DCGF24-24-8
Automatic bottle water/ juice/ carbonated drink beverage filling packing machine production line/Carbonated Soft Drinks Water Filling Machine/Carbonated Soft Drink Production Line/Carbonated Soft Drink Bottling Machine

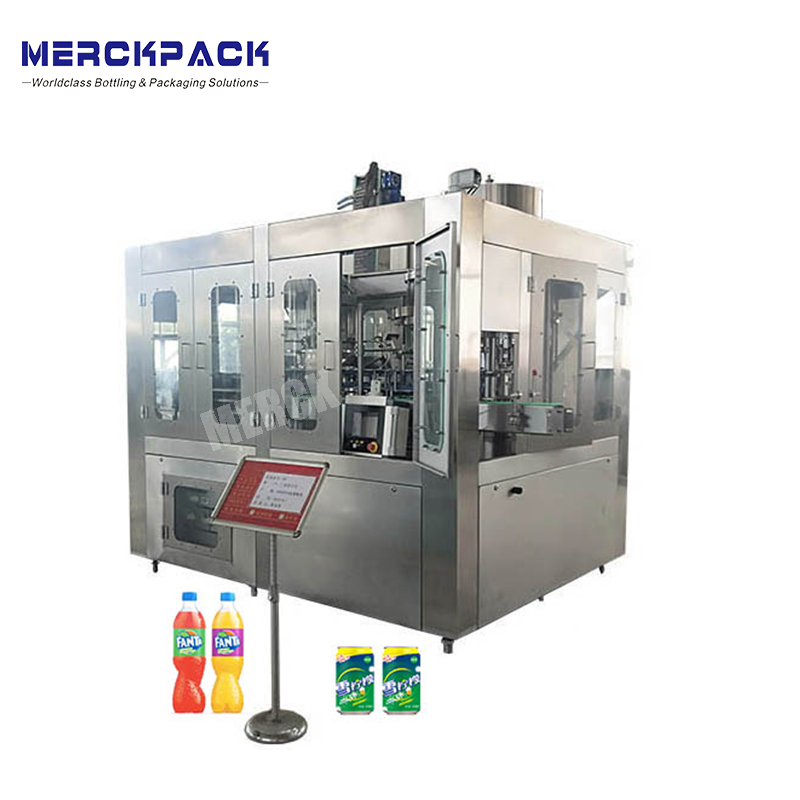

PET Glass Bottle CO2 Carbonated Soft Drinks Water Filling Machine /Carbonated Soft Drinks Bottling Line Price The carbonated water filling machine adopts isobaric filling equipment that integrates cleaning, filling and capping. Based on the introduction, digestion and absorption of foreign advanced technology, according to the requirements of carbonated water filling process, it is an advanced filling equipment. soft drink filling line/soft drink production line
Isobaric Carbonated Beverage Filling Machine/Automatic Filling Machine/Carbonated Water Filling Machine/Bottled Soda Filling Machine

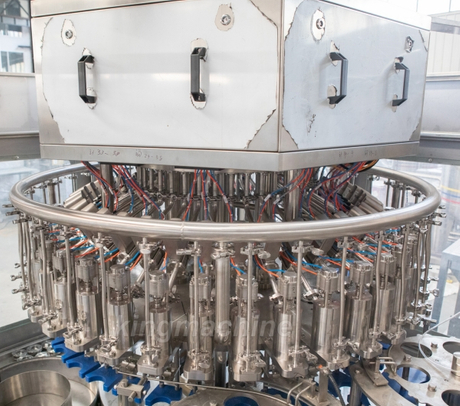

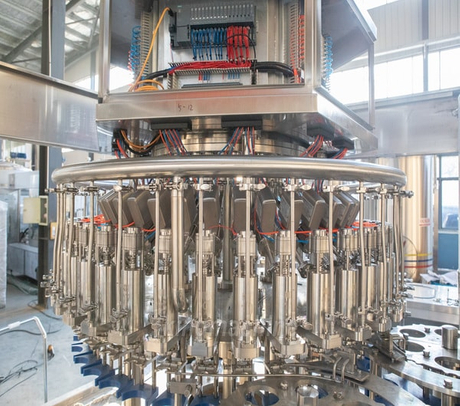

The isobaric filling machine generally maintains a certain filling pressure in the storage tank. When the container to be filled enters the filling machine, the container is first inflated, and the gas can be compressed air or carbon dioxide gas, with carbon dioxide gas being preferred. When the pressure in the container and the storage tank pressure is the same, that is, with the self-weight of the liquid through the opening of the filling valve filling. During the filling process, the gas inside the container will be exported smoothly and returned to the storage tank or the gas chamber.
Product Features
1.By 3-in-1 monoblock filling machine, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle change is easier.
2.The parts that direct contact with product are made of SUS 316L stainless steel and no technology corner pockets.
3.Rapid flow, highly filling precision, nicety liquid level without any liquid loss to satisfy the filling process demand.
4.Periodical gas exhaust and fast and slow snifting prevent product foaming.
Technical Parameter
Model | DCGF18-18-6 |
Capacity(500ml) | 5000-6000bottle per hour |
Suitable bottle shapes | PET Circular or Square |
Bottle diameter | 50~115mm |
Bottle height | 120~320mm |
Compressor air | 0.3~0.7Mpa |
Washing medium | Pure Water |
Filling type | Isobaric filling |
Application | Carbonated drink / Sparkling water |
Main motor power | 2.2kW |
Overall dimensions | 2760*2060*2700 |
Weight | 4500kg |
|Customer Production
| More Products
Focus on intergrated solution for beverage and liquid food, such as Mineral drinking water, Fruit Juice, Carbonated beverage,Energy drinks,Alcohol Wine, Beer, Edible oil, Dairy and Dauily care products, etc.
|Complete Line Solution
1.Pure water treatment filter system
This Reverse osmosis system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department. This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr.
This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank. This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised.We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc
2.Automatic blow molding machine for PET bottle:
Full automatic bottle blowing making machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity, etc from 2500BPH to 12000BPH for 500ml bottle.
3.Carbonated drink mixer and water chiller
Carbonation mixer: 1500L/Hr,2000L/Hr,3000L/Hr,5000L/Hr, etc. Co2 content is from 2.0-3.8
Water chiller: working with carbonation mixer, the cooling medium of water chiller going to heat plate exchanger of carbonation mixer to cooling carbonation drink to 3 degree to 8 degree (filling temperature).
4.Automatic OPP/BOPP hot glue labeling machine:
5.High speed automatic PE film shrink packing machine:
|Turkey Project
Carbonated Drink/Water/Juice Production Line
1.PET Bottle Blowing Machine ; 2.Washing Filling Capping Machine; 3.Cap elevator ; 4.Code sprayer ; 5.Conveyor System ;6.Automatic labeling Machine ; 7. Auotmatic PE film shrink wrapping machine ;
|Company Info
ZHANGJIAGANG MAERCK PACKING MACHINER CO.,LTD.
We are not only a machine manufacturer, we can also supply turnkey project according to customers’ request, including workshop design, machine layout design, water, gas, electric cable layout design, label and bottle design and so on. Our mission is to ensure customers’ plant properly working and help customers win their market.
Merck, as a professional carbonated beverage bottling machine manufacturer and exporter in China, has several carbonated water bottle filling machine production lines with high quality service, giving you the best choice.
Different capacity small bottle mineral water filling machine
| FAQ
1.Q For a new starter, how can you help me start and run a water or beverage bottling plant?
